Newtek Kabel India Pvt. Ltd.
Copper wire you can stop worrying about.
ISI-marked house wires in three grades of fire safety, industrial and solar cables, and Edge touch switches. Made in our units in Gujarat and Delhi, sold through dealers across India.
- Pure bare copper in every conductor
- 99.95%
- Pure bare copper in every conductor
- Conductivity, IACS
- 101%
- Conductivity, IACS
- Voltage grade on house wire
- 1100 V
- Voltage grade on house wire
- ISI marked, CE and RoHS
- IS 694
- ISI marked, CE and RoHS
House wires
Three wires. Three levels of fire safety.
All three are single-core, flexible copper, 1100 V and ISI marked. The difference is how the insulation behaves if something goes wrong.
Shock Free
HRFRHeat-resistant, flame-retardant PVC
Our general-purpose house wire. Heat-resistant PVC carries more current before it softens, and the flame-retardant compound stops a fault from spreading along the run.
Best for · Everyday lighting, fan and socket circuits
Fire Free
FR-LSHFlame-retardant, low smoke & halogen
A self-extinguishing compound with a higher oxygen index. If a fire does start, it gives off far less smoke and acid gas, which keeps escape routes visible.
Best for · Apartments, offices, shops and shared buildings
Home Shield
FRHFFlame-retardant, halogen-free
Halogen-free insulation that releases no corrosive gas when it burns. The safest of the three for bedrooms, hospitals, schools and server rooms.
Best for · Homes with children, hospitals, schools, data rooms
| Property | Shock Free | Fire Free | Home Shield |
|---|---|---|---|
| Flame retardant | Yes | Yes | Yes |
| Heat resistant PVC | Yes | Yes | Yes |
| Low smoke when burning | — | Yes | Yes |
| Halogen free | — | — | Yes |
| Sizes (sq mm) | 0.5 – 6.0 | 0.5 – 6.0 | 1.0 – 6.0 |
The full range
From the switchboard to the borewell.
One supplier for the wiring in a home, a factory floor or a solar plant.
Fibre optics, explained
Inside an optical fibre cable.
Six layers protect a strand of glass that carries data as light. Scroll to strip one down and see what each layer does.
01/ 06
Outer jacket
- Diameter
- 2 or 3 mm
- Material
- LSZH or PVC
The outer skin takes the knocks: abrasion, moisture and handling during installation. Its colour tells you the fibre type at a glance: yellow for single-mode, orange or aqua for multimode.
02/ 06
Aramid yarn
- Role
- Strength member
- Material
- Aramid fibre
Strong, non-conductive yarn laid along the cable. When the cable is pulled through a duct, the yarn takes the load so the glass inside is never stretched.
03/ 06
Tight buffer
- Diameter
- 900 µm
- Material
- Thermoplastic
A thicker plastic layer bonded around the coated fibre. It makes the fibre easier to handle and terminate, and its colour identifies the fibre in a multi-fibre cable.
04/ 06
Primary coating
- Diameter
- 250 µm
- Material
- UV-cured acrylate
Two layers of acrylate applied while the glass is drawn: a soft inner layer that cushions it against micro-bends and a harder outer layer that protects it. It is stripped off before splicing.
05/ 06
Cladding
- Diameter
- 125 µm
- Material
- Pure silica glass
Glass with a slightly lower refractive index than the core. Light that meets the boundary at a shallow angle reflects back into the core, so the signal stays inside the fibre, even round gentle bends.
06/ 06
Core
- Diameter
- 9 µm
- Material
- Doped silica glass
The light travels here. A single-mode core is so narrow that light follows a single path, which keeps the signal clean over tens of kilometres at 1310 and 1550 nm.
All six layers
One glass strand, five layers of protection.
Only the core and cladding guide the light. Everything outside them keeps that glass straight, dry and free of strain.
Drawn far larger than life. A real core is 9 µm across, less than a hundredth of a millimetre.
Back together
A few millimetres of cable.
Light enough to coil in one hand, and immune to interference from the power cables beside it, because the signal is light, not electricity.
Our LAN, CCTV and coaxial cables →

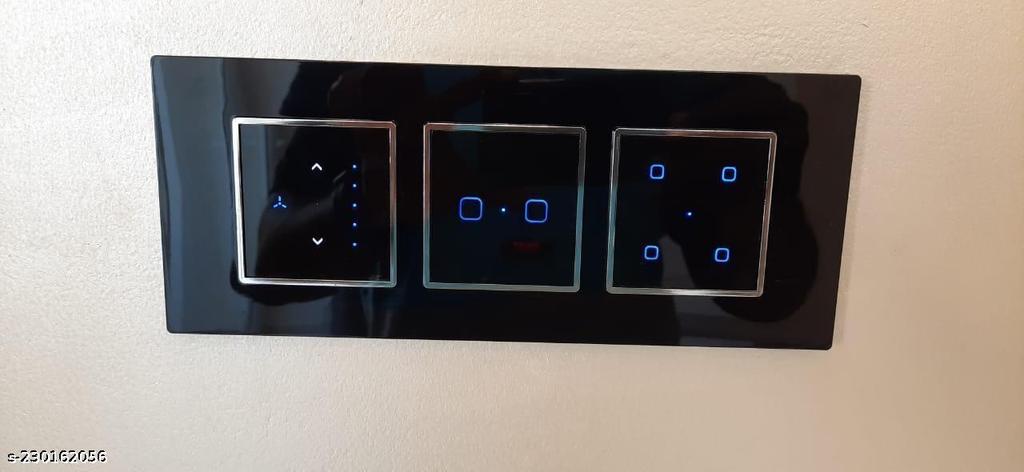

Edge touch switches
The switchboard, finally worth looking at.
Toughened glass panels from 2 to 12 modules. Control them by touch, with the remote, from your phone, or by asking Alexa or Google.
Black or white glass
Black, silver or gold edge trim
One remote per room
20 switches, 2 fans, 2 dimmers, 2 curtains
Child lock
Plus master off and night mode
5-year warranty
Designed and made in India
Inside every coil
What is built into the insulation.
Every Newtek house wire is drawn from more than 99.95% pure copper and insulated with a compound that resists heat, flame, termites and rodents.
- 01
Heat resistant
Higher current-carrying capacity before the insulation softens.
- 02
Anti-termite, anti-rodent
Treated insulation, certified by CPRI.
- 03
High insulation resistance
HIR compound, certified by CPRI.
- 04
RoHS compliant
Restricted substances within RoHS limits, certified by Bureau Veritas.
- ISI · IS 694
- IS 17048
- CE
- RoHS
- REACH
- ISO 9001
Downloads
Current price lists and catalogues.
Need a quote, a sample coil or the latest price list?
Tell us the sizes and quantities you need and our sales team will get back to you.
